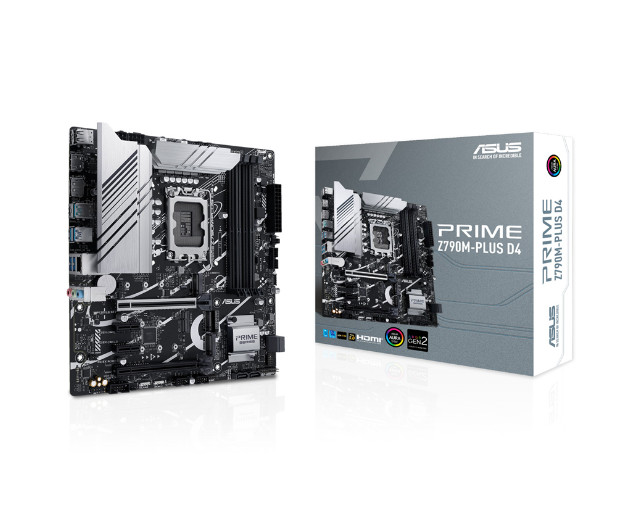

Mainboard Asus PRIME Z790M-PLUS D4-CSM DDR4

Đặc điểm nổi bật

Socket: Intel Socket LGA1700 hỗ trợ CPU intel thế hệ 13,Intel thế hệ 12. Pentium® Gold and Celeron® Processors

Kích thước: mATX

Khe cắm RAM: 4 khe (Tối đa 126GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots

Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports

Bảo hành: 36 tháng

Giá thị trường:

Giá khuyến mãi:

(Tiết kiệm: 0 đ )

Tình trạng: Còn hàng

LIÊN HỆ

Thông số kỹ thuật Thông tin thêm

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	PRIME Z790M-PLUS D4-CSM
CPU hỗ trợ	Intel
Chipset	Intel Z790 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC) 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC) 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel^® 13^th & 12^th Gen Processors* 1 x PCIe 5.0 x16 slot Intel^® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® 13^th & 12^th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports*
Cổng kết nối (Internal	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4^®) header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI^® port 1 x Intel^® 1Gb Ethernet port 3 x Audio jacks
LAN / Wireless	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. 1 x Intel^® 1Gb Ethernet ASUS LANGuard
Kích cỡ	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
