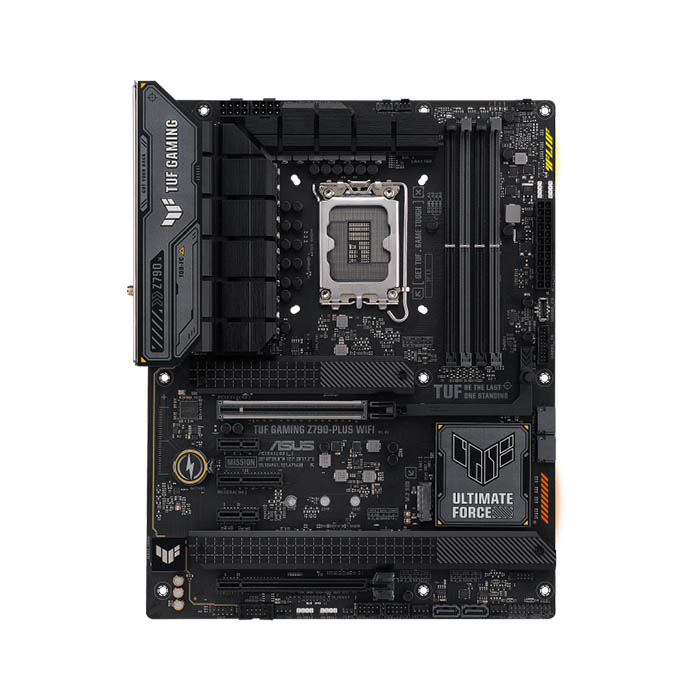

Mainboard Asus TUF Gaming Z790 PLUS Wifi DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

TUF Gaming Z790 PLUS Wifi DDR5

CPU hỗ trợ

Chipset

Intel Z790 Chipset

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 13^th & 12^th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel^® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel^® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4^®) header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

LAN / Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
